Blueprint API
Extending the plugin & Mass Entity blueprint support

Blueprint API

Some functions of the plugin are be exposed through blueprint but the blueprint API is fairly limited. This is due to blueprint support in the Mass Entity framework. The blueprint API is curently limited to spawning and despawning and can be accessed through the spawner actor.

Spawner API

Spawner Blueprint API Preview

Spawning Groups

The following functions will create a new boid group and spawn all configured boid subsets (spawn configurations).

Function	Details
Spawn Group	Schedules a spawn request of the group for which the spawner is configured, with optional completion callback. Parameters On Spawned Callback: Optional event called upon spawn completion. Boids might not be fully initialized yet and will not be simulated or rendered until initialization completes. The event returns the Id of the created group as well as the handles of all created boids.
Spawn Group Immediate	Spawns the group for which the spawner is configured immediately. Boids are created upon function return but are not fully initialized yet. They will not be simulated or rendered until fully initialized. * Users should preferably use the non-immediate version to avoid concurrency issues. Return value Group ID: ID of the group that was spawned or -1 if it failed. Spawned Boids: List of boid handles that were spawned
Respawn Group	Schedules a respawn request for a the contents of a group associated with this spawner, with optional completion callback. This function does not despawn the group, it adds an extra batch of boids to it. Parameters On Spawned Callback: Optional event called upon spawn completion. Boids might not be fully initialized yet and will not be simulated or rendered until initialization completes.The event returns the Id of the reused group as well as the handles of all created boids.
Respawn Group Immediate	Respawn all the contents of the spawner in a group it is associated with immediately. This function does not despawn the group, it adds an extra batch of boids to it. Boids are created upon function return but are not fully initialized yet. They will not be simulated or rendered until fully initialized. * Users should preferably use the non-immediate version to avoid concurrency issues. Return value Spawned Boids: List of boid handles that were spawned.

Spawning Subsets

A subset is a subgroup as defined in the ‘Spawn configurations’ on the spawner. Using the following Blueprint functions, you can spawn subsets individually within a previously created group.

Function	Details
Spawn Subset	Schedules a spawn request for a subset of the group as configured in the spawner, with optional completion callback. Parameters Group ID: Id of the group in which to spawn, as returned by the ‘Spawn Group’ function variants. Subset Index: Index of the subset configuration to spawn. This index matches the ‘Spawn configs’ list order. On Spawned Callback: Optional event called upon spawn completion. Boids might not be fully initialized yet and will not be simulated or rendered until initialization completes. The event returns the boid handles of all created boids.
Spawn Subset Immediate	Spawns a subset of the group as configured in the spawner immediately. Boids are created upon function return but are not fully initialized yet. They will not be simulated or rendered until fully initialized. * Users should preferably use the non-immediate version to avoid concurrency issues to avoid concurrency issues. Parameters Group ID: Id of the group in which to spawn, as returned by the ‘Spawn Group’ function variants. Subset Index: Index of the subset configuration to spawn. This index matches the ‘Spawn configs’ list order. Return value Spawned Boids: List of boid handles that were spawned.
Spawn Subset with Count	Schedules a spawn request for a subset of the group as configured in the spawner, but with the provided number of entities, with optional completion callback. Parameters Group ID: Id of the group in which to spawn, as returned by the ‘Spawn Group’ function variants. Subset Index: Index of the subset configuration to spawn. This index matches the ‘Spawn configs’ list order. Count: Number of boids to spawn. On Spawned Callback: Optional event called upon spawn completion. Boids might not be fully initialized yet and will not be simulated or rendered until initialization completes. The event returns the boid handles of all created boids.
Spawn Subset with Count Immediate	Spawns a subset of the group as configured in the spawner immediately. Boids are created upon function return but are not fully initialized yet. They will not be simulated or rendered until fully initialized. * Users should preferably use the non-immediate version to avoid concurrency issues. Parameters Group ID: Id of the group in which to spawn, as returned by the ‘Spawn Group’ function variants. Subset Index: Index of the subset configuration to spawn. This index matches the ‘Spawn configs’ list order. Count: Number of boids to spawn. Return value Spawned Boids: List of boid handles that were spawned.

Despawning Groups

You can despawn boids previously created by a spawner using one of the following functions.

Function	Details
Despawn Group	Schedules a despawn request for the group with the provided ID. Parameters Group ID: Id of the group to despawn, as returned by the ‘Spawn Group’ variants.
Despawn Group Immediate	Despawn the group with the provided ID immediately. This is an unsafe call to do on the game thread as there might be background tasks currently running. Users should preferably use the non-immediate version. Parameters Group ID: Id of the group to despawn, as returned by the ‘Spawn Group’ variants.
Despawn All	Schedules a despawn request for the all groups that were instantiated with this spawner.
Despawn All Immediate	Despawn all groups that were instantiated with this spawner immediately. This is an unsafe call to do on the game thread as there might be background tasks currently running. Users should preferably use the non-immediate version.

MegaBoids Subsystem API

The MegaBoids Subsystem API allows finer grained control of boids lifetime management as well as their group. You do not need a spawner to use the following functions but you will be responsible for manually spawning/despawning of created entities whereas Spawners will despawn it’s associated groups when unloaded as regular actors.

Function	Details

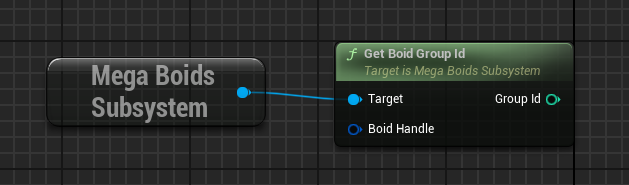

Get Boid Group Id	Get the boid’s group Id. Return value Group Id: The group Id.
Get Boid Transform	Get the current transform for the provided boid. Return value Transform: The boid’s transform.
Get Boid Velocity	Get the current velocity for the provided boid. Return value Velocity: The boid’s velocity vector.
Get Boid Transform and Velocity	Get the current transform and velocity for the provided boid. Return value Transform: The boid’s transform. Velocity: The boid’s velocity vector.
Get Boid Hit result	Gets the boid that was hit by a trace hit result. Parameters Trace Hit Result: Hit result from a trace for which we want to determine if a boid was hit. Return value Boid Hit Result: Boid hit result with the handle to the boid found.

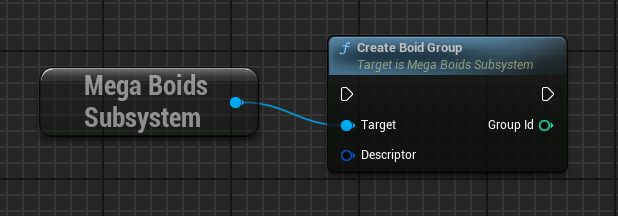

Create Boid Group	Create a boid group container. Parameters Descriptor: Descriptor for the group that contains the details of how to configure the group, see below. Return value Group Id: Id of the newly created group.

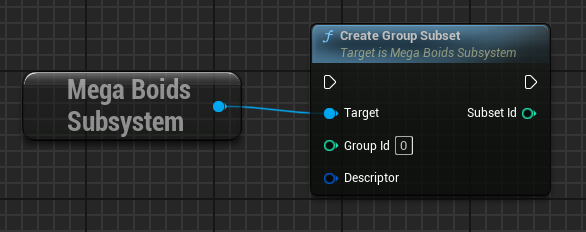

Create Group Subset	Create a subset of boids within a group. Subsets are used to spawn batches of boids that shared common properties. Parameters Group Id: Id for the group that contains the subset. Descriptor: Descriptor for the subset that contains the details of how to configure the subset, see below. Return value Subset Id: Id of the newly created subset.

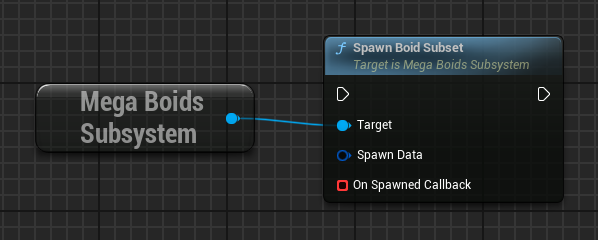

Spawn Boid Subset	Schedule a task to spawn a batch of boids of the provided subset. Parameters Spawn Data: The spawning details, see below On Spawned Callback: Optional event called upon spawn completion. Boids might not be fully initialized yet and will not be simulated or rendered until initialization completes. The event returns the boid handles of all created boids.

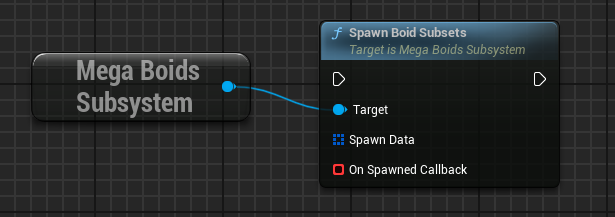

Spawn Boid Subsets	Schedule a task to spawn multiple batches of boids of the provided subsets. Parameters Spawn Data: Array of the spawning details, see below On Spawned Callback: Optional event called upon spawn completion. Boids might not be fully initialized yet and will not be simulated or rendered until initialization completes. The event returns the boid handles of all created boids.
Despawn Boid	Schedules a task to despawn the provided boid. Parameters Handle: Handle to the boid to despawn.
Despawn Boids	Schedules a task to despawn the provided list of boids. Parameters Handles: List of handles to the boids to despawn.

Structures

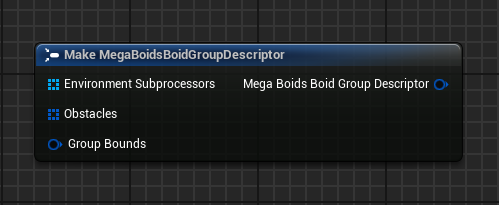

MegaBoidsBoidGroupDescriptor

Field	Details
Environment Subprocessors	List of configurations for environments subprocessors appleid to all boids of the group.
Obstacles	List of obstacles the boid in the group need to avoid.
Group Bounds	Bounds of the group. Boids will be pushed inwards when near these bounds.

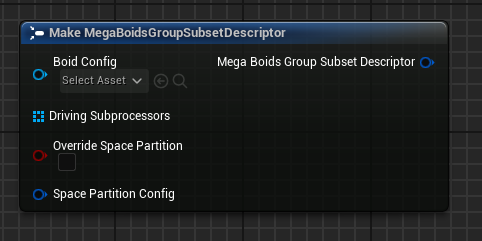

MegaBoidsGroupSubsetDescriptor

Field	Details
Boid Config	Data asset describing the boid composition.
Driving subprocessors	Extra driving subprocessors that are applied on top of those defined in the boid config. They are used for environment specific behavior or specialization.
Override space partition	Should a custom space partition config be used instead of the one defined in the boid config?
Space partition config	Space partition configuration to use if you override the boid config space partition setup.

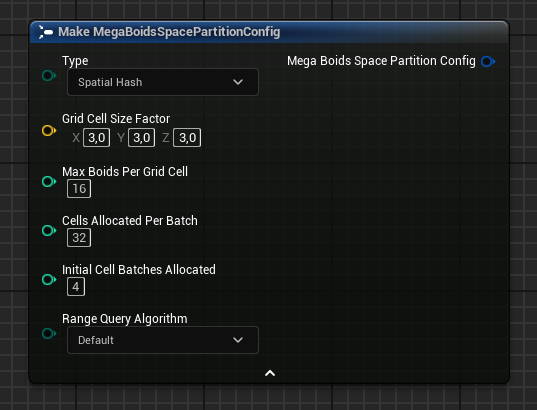

MegaBoidsSpacePartitionConfig

Field	Details
Type	Type of space partition to use. None, 3D Cell Grid or Spatial Hash.
Grid cell size factor	[Spatial Hash and Grid only] Size of the cells of the space partition as a factor of boid view distance. Cell size will be equal to ‘BoidSize * ViewDistanceFactor * GridCellSizeFactor’.
Max boids per grid cell	[Spatial Hash and Grid only] The maximum number of boids tracked within a cell, allocated on a first come, first serve basis.
Cells allocated per batch	[Spatial Hash only] Spatial Hash cells are allocated in batches with each batch having this number of cells reserved in memory.
Initial cell batches allocated	[Spatial Hash only] Initial nmumber of cells allocated when the space partition gets created. Ideally, this would cover all required cells for the boids lifetime.
Range query algorithm	[Spatial Hash only] Algorithm used for range queries. Default is BigMaxLitMin

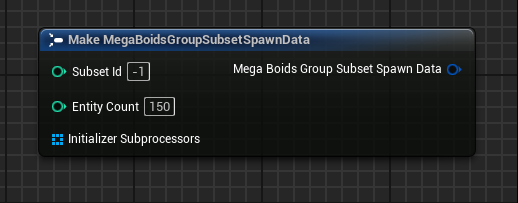

MegaBoidsGroupSubsetSpawnData

Field	Details
Subset Id	Id of the subset to spawn (returned from Create Group Subset).
Entity Count	Number of boids to spawn.
Initializer subprocessors	List of initializers to apply after boid spawn.

Extending the plugin & Mass Entity blueprint support

MegaBoids is a plugin based on the Mass Entity framework. Unfortunately, Mass Entity is currently not compatible with Unreal Blueprints and it seems unlikely it ever will given some core design choices from Epic when developing Mass Entity. There is currently no way to create or access data types from blueprint, since they are built upon a C++ feature called ‘templates’. Therefore, the following plugin extensions must absolutely be added through our C++ API:

Driving subprocessors
Environment subprocessors
Initialization subprocessors
Movement models

This is a good opportunity for you to learn C++. We put a lot of effort into abstracting the concepts of Mass Entity in a digestible manner such that developers can focus on what matters to them: making great games! If all else fails, check out our consulting services.
